Desk Stranding Lamp

A desk lamp inspired by Death Stranding: six jointed arms around a central hub, each carrying its own LED strip. I 3D printed the parts, put the lamp together, and did all of the wiring myself.

Timeline Sep 2026
Type Personal build
My role 3D printing, assembly, LED wiring
Model design Nils Kal · MakerWorld
Design credit

The printable model is Desk Stranding — The Death Stranding Desk Lamp by Nils Kal (@NilsKal), shared on MakerWorld under a CC BY-NC license. The design is theirs. The printing, assembly, and wiring are mine.

View on MakerWorld ↗

01 Print & Assembly

Every structural part is 3D printed: a black hub and arm panels, joined by white linkages that pivot on screws. From there it was a matter of working through the designer's assembly guide chapter by chapter, building up the main body one arm at a time.

Lamp body held by the hub, with six black arm panels on white linkages and a red wire poking out of each panel
Main body assembled: hub, linkages, and arm panels, with a lead already run into each arm.

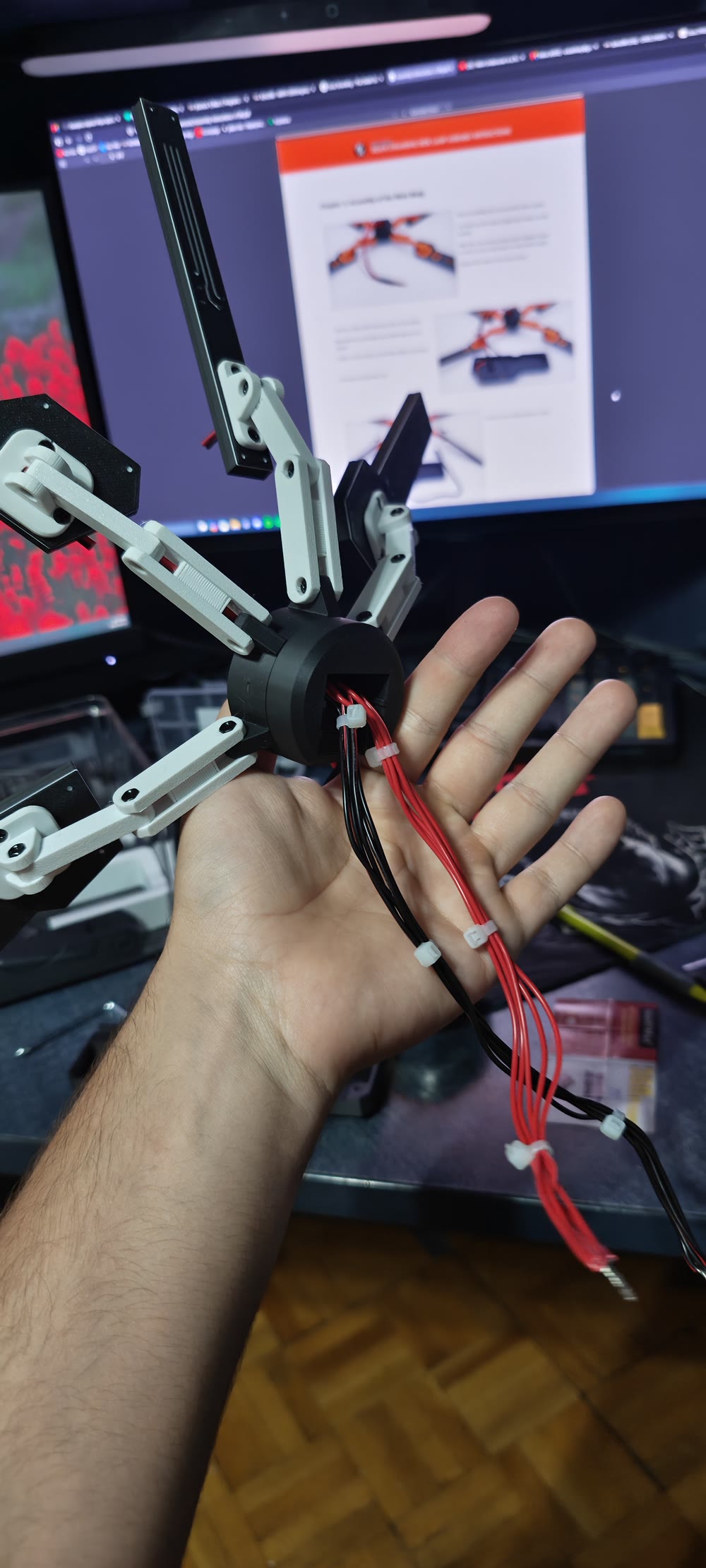

Back of the assembled lamp hub resting in a hand, with red and black wires bundled by zip ties
The other side: the red and black leads from every arm gathered out of the hub and zip-tied into one harness.

02 Wiring

Each of the six arms carries its own LED strip. I wired a red and black lead to every strip, seated the strips in the arm panels, and routed the leads back through the linkages into the hub. From there, the six pairs are bundled with zip ties into a single harness running out the bottom.

Wiring an LED strip into one of the arm panels.
Frame assembled, with every arm's leads running back through the hub.

03 Lit Up

Powered on, all six arms light up, with a blue light glowing in the hub at the center.

The finished lamp, switched on.
